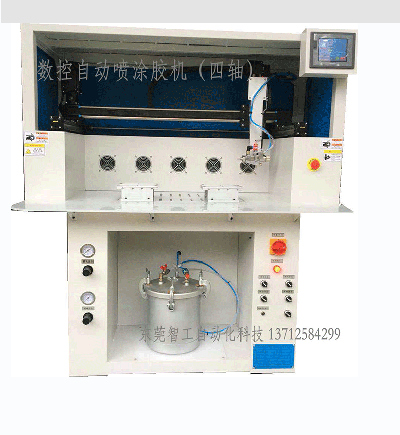

ZG-806-4PS NC Automatic Coating Machine
1. Main applications: Eye boxes, packaging boxes and other three-dimensional, three-dimensional, multi-angle trajectory uniform gluing.
2. The trajectory width of glue running is 3-20 mm, adjustable (changing different size of glue head)
3. Touch screen control, teaching method setting glue trajectory map, easy visual operation, can store 999 files, and external USB interface.
4. Effective scope of work: maximum 75*45*15cm applicable box
5. Applicable glue: glue with higher viscosity such as yellow glue and universal glue
6. Characteristics
1) Manpower saving: Compared with the traditional manual painting, the gluing speed is faster, the efficiency is higher, and 2-4 people can be saved.
2) Save glue: The glue trajectory is accurate, the thickness of the glue is uniform and stable, 40% - 60% less than the traditional manual glue.
3) Environmental protection: glue is stored and flowed in a sealed environment to prevent the volatilization of the glue solution; at the same time, there is a good automatic air suction system on the surface of the glue coating operation to keep the spraying operation clean and odorless.
7. Configuration: New touch screen CNC system, servo high-speed precision motor, special cables for robots, precise automatic spray gun, special material anti-corrosive rubber hose; thus ensuring stable operation, safety, high efficiency, precise track painting glue.
8. Whole machine parameters:
Serial number
Name
technical parameter
Serial number
Name
technical parameter
One
Voltage/Power
220V/1KW
Four
Maximum speed
X/Y/Z/Axis 800mm/sU
Two
Electric machinery
Hybrid Servo Motor
Five
weight
200KG
Three
pressure
0.1-0.5 MPA
Six
size
1550*1250*1550mm
